EASY Group RC AX 6000
Sägeanlage für Rollladenachsen
Special features:

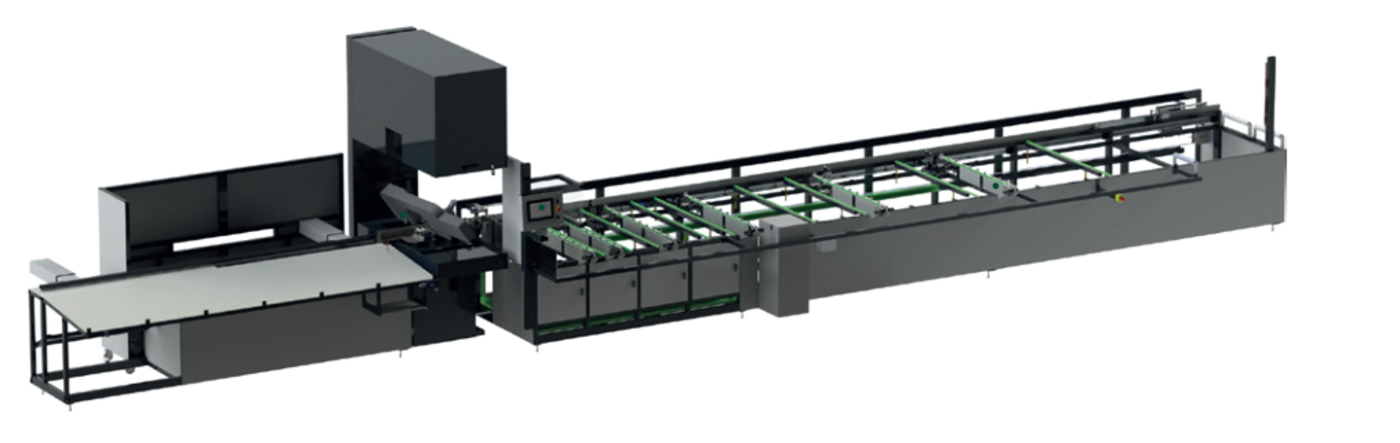

Automatic sawing system especially for cutting roller shutter axles with a maximum length of
max. 6000 mm and a diameter of 40 to 100 mm.
Technical data:
Max. Length of the roller shutter axles
6.000 mm
Diameter of roller shutter axles
40-100 mm
Length
13.000 mm
Width
2.250 mm
Height
1.825 mm
Drive power
3 kW
Programmable travel distance
7.000 mm
Control unit
B&R Basis
Version
automatic
Materials
Aluminium
Plastic
Plastic
Additional information:
Branches
Window construction
Sun protection
Sun protection
Application areas
Roller shutter production
