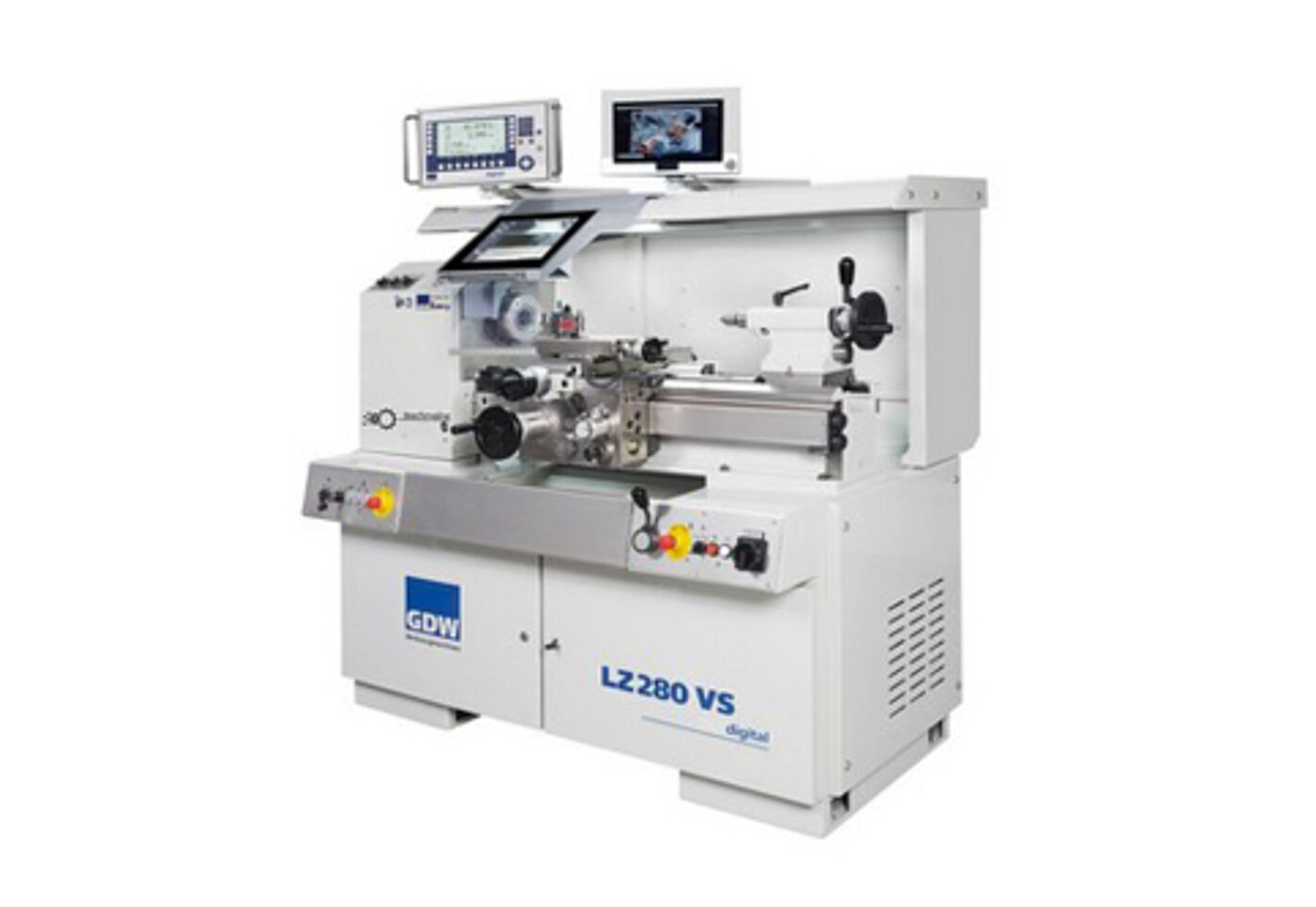

GDW LZ 280 VS-G teachingline
center lathe
Special features:
Teachingline - The intelligent digitalization for lathes (Industry 4.0)
teaching-digital 4.0 is GDW's tried-and-tested, pioneering innovation for the intelligent digitalization of lathes in training. Start into the digital future with the safety of the market leader in the field of conventional precision lathes.
With teaching-digital 4.0, lathes can be networked, work on the machine can be transmitted live to the theory rooms and individual production processes can be recorded as sample applications. The digital classroom and the digital workshop are thus becoming a reality.
Teaching-digital 4.0, the digital package from GDW, can be retrofitted to the basicline, classicline and comfortline series at any time.
Technical data:
Control unit
GDW Basis
GDW 3-Achsen Positionsanzeige
GDW 3-Achsen Positionsanzeige
Spindle speed
3.000 U/min
Drive power
2,40 kW
Swing diameter bed
330 mm
Swing diameter slide
190 mm
Peak width
670 mm
Spindle hole
43 mm
Additional information:
Application areas
education and training
Small series
Small series
