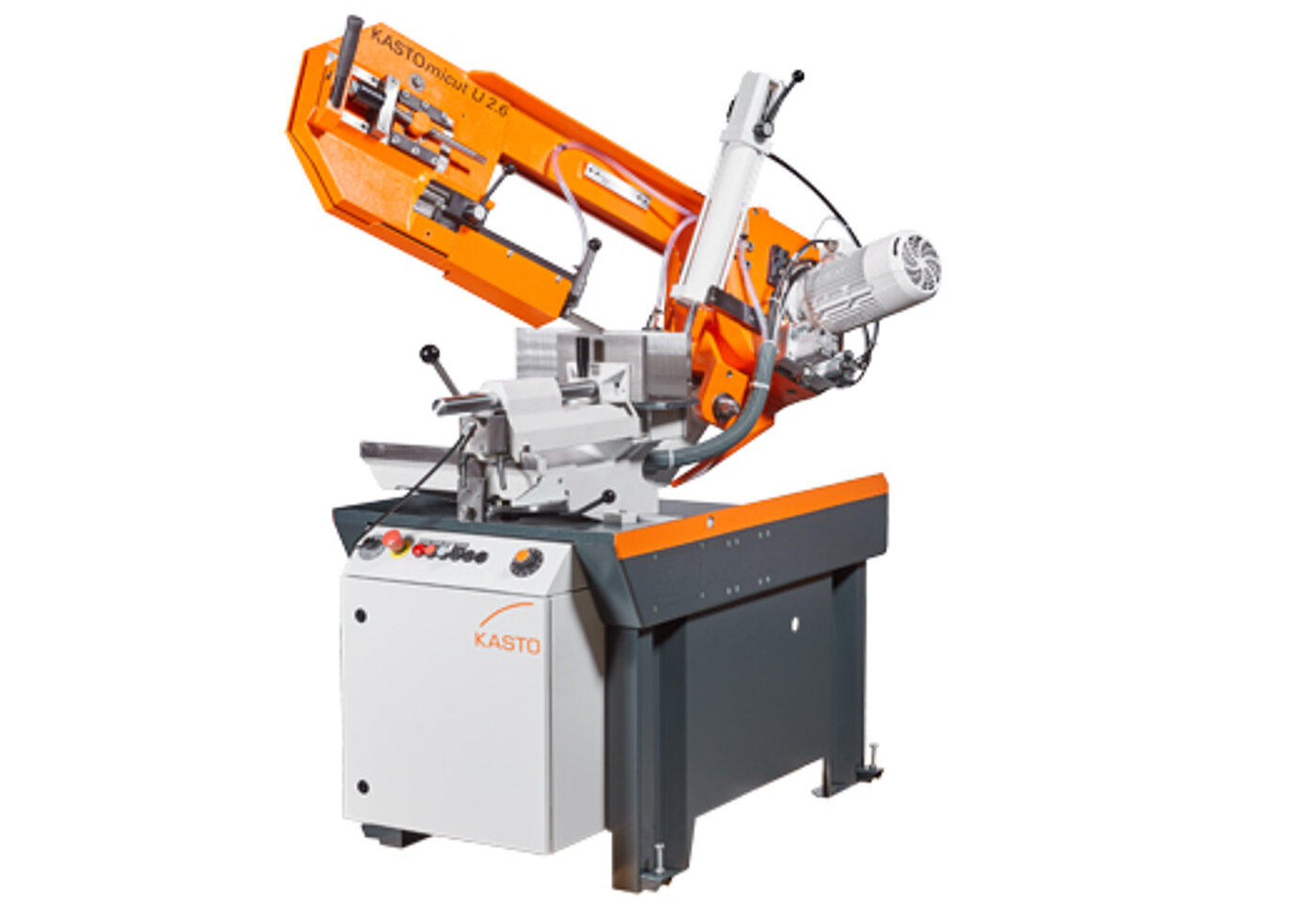

KASTO Micut U2.6

Semi-automatic band saw

Request machine now

KASTO Micut U2.6

Semi-automatic band saw

Special features:

Mitre bandsaw KASTOmicut U 2.6: Semi-automatic swing frame bandsaw

  • Frequency controlled, infinitely variable saw drive
  • Turntable as material support
  • Saw feed hydraulically controlled
  • Horizontal vice manual (E 2.6)
  • Horizontal vice with quick adjustment and hydraulic short stroke (U 2.6)
  • Infinitely variable mitre device (-45° to +60°)
  • Stepless saw band arm adjustment
  • Coolant system with two coolant nozzles
Technical data:
Control unit
Kasto manuell
Drive power
1 kW
Cutting range pipe material round
260 mm
Cutting range solid material round
160 mm
Cutting range pipe material rectangle
310 x 260 mm
Cutting range pipe material square
260 x 260 mm
Cutting area solid material square
160 x 160 mm
Mitre
links,rechts -45°, +60°
Version
semi-automatic
Materials
Aluminium
Additional information:
Branches
Automotive
Application areas
education and training
